Turn a project specification into an approvable safety-valve package.
HHSV supports sizing, technical submittals, deviation closure, controlled manufacturing, inspection and final documentation from RFQ through shipment.
Four outputs must stay aligned from quotation to release.
Calculable
Service data and sizing assumptions are explicit enough to support valve selection.
Approvable
Datasheets, drawings, deviations and certification scope can pass technical review.
Manufacturable
Approved configuration, materials and document requirements become controlled production inputs.
Traceable
Inspection, test, serial/material records and MDR remain connected to the supplied valves.
Close the issues that normally stall approval or shipment.
Most delay is created by incomplete service data, unresolved deviations, uncontrolled document revisions or inspection requirements discovered too late.
Incomplete sizing basis
Confirm medium, required capacity, operating/set pressures, temperature, backpressure, connections and material requirements before final selection.
Deviation closure
Identify departures from the project specification, standard or requested document scope instead of burying them in a commercial quotation.
Revision control
Track datasheets, GA drawings, QAP/ITP and MDR requirements by revision and approval status.
One controlled sequence from RFQ to shipment.
Exact hold points and deliverables are defined by the project specification, purchase order and approved inspection/document plan.
Specification / RFQ
Review service data, valve requirements, standards, quantities, documentation and inspection scope.
Sizing & selection
Confirm calculation basis, required capacity/area, valve architecture, materials and assumptions.
Technical quotation
Submit commercial offer with datasheet, calculation basis, GA/dimensions, deviations, document index and schedule as applicable.
Technical approval
Close comments and freeze the approved technical baseline before controlled manufacturing.

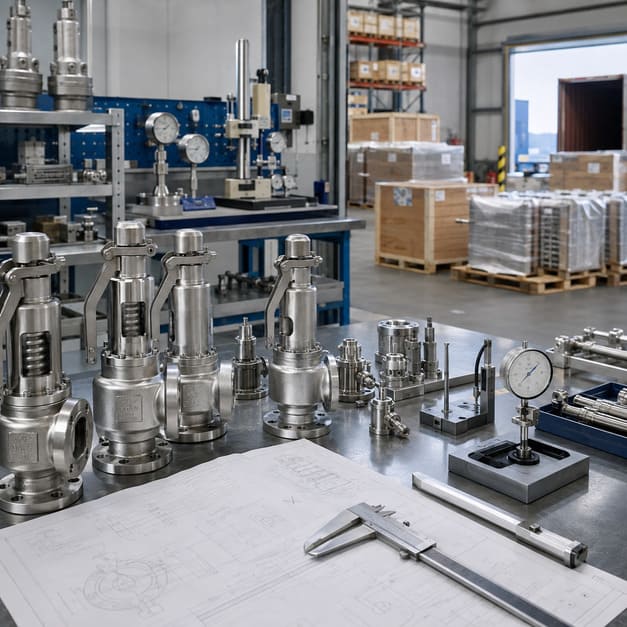

Manufacturing
Procure and manufacture to the approved configuration while reporting relevant production milestones.
Inspection & testing
Execute the approved inspection/test scope, including third-party witnessing where specified.
MDR & release
Compile required material, inspection, test and conformity records for document completion and release.
Shipment
Ship after applicable technical, quality, documentation and release conditions are closed.
Keep the approval package compact, complete and version-controlled.
Sizing basis & datasheet
Service conditions, assumptions, required capacity and selected valve data.

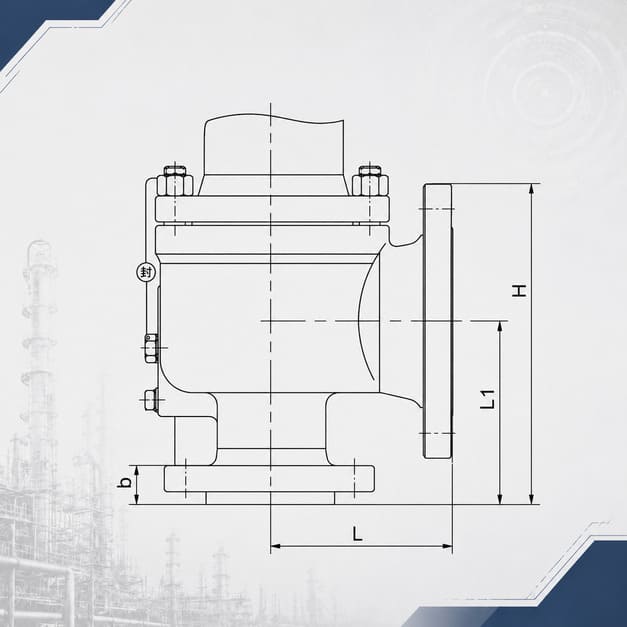

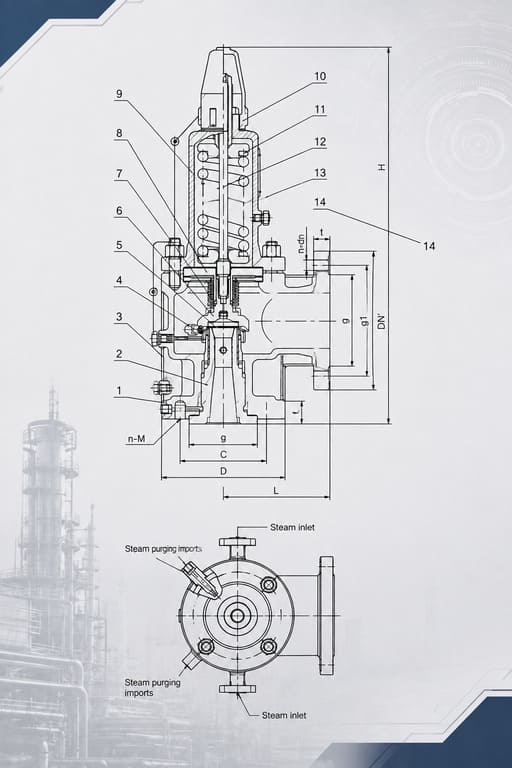

GA drawing
Dimensions, connections and project-specific drawing information where required.
Deviation list
Explicit departures, exclusions and clarifications against the RFQ or project specification.
Certificate matrix
Applicable certificate/authorization evidence mapped only to the actual supplied product scope.
QAP / ITP
Quality and inspection plan, hold/witness points and responsibilities when required by the order.
MDR index
Defined final-document list covering approved drawings, material and test/conformity records as applicable.
Make schedule and evidence visible before they become blockers.
Revision status
Separate submitted, commented, revised and approved documents so production does not use an obsolete baseline.
Manufacturing milestones
Report material, manufacturing, inspection/witness and release timing separately when they affect project dates.
Third-party inspection
Define witness/hold points, inspector access and required records before the relevant manufacturing stage.
Release readiness
Treat technical approval, inspection closeout and MDR completion as shipment conditions where the order requires them.
Trace the delivered valve back to the controlled records.
Depending on the project scope, records can include material certificates, heat/serial traceability, inspection status, set-pressure and performance tests, conformity documentation and approved MDR content.
Good project inputs shorten the comment cycle.
Service data
Medium, capacity, pressures, temperature and backpressure.
Project standard
Applicable project specification, codes and owner/EPC requirements.
Valve scope
Connections, materials, quantities and any preferred configuration.
Document scope
Datasheets, drawings, calculations, QAP/ITP, MDR and required certificates.
Inspection & dates
Third-party/witness requirements plus required approval and delivery milestones.
Review the engineering, quality and compliance layers together.
Certifications
Verify legal entity, applicable product scope and authorization boundaries.
Safety Valves
Review product families before confirming the model-level technical scope.
Send the specification before the quotation is locked.
Include available service data, project standards, required certificates, document list, inspection plan, quantities and delivery milestones. Missing inputs can be identified during technical clarification.
